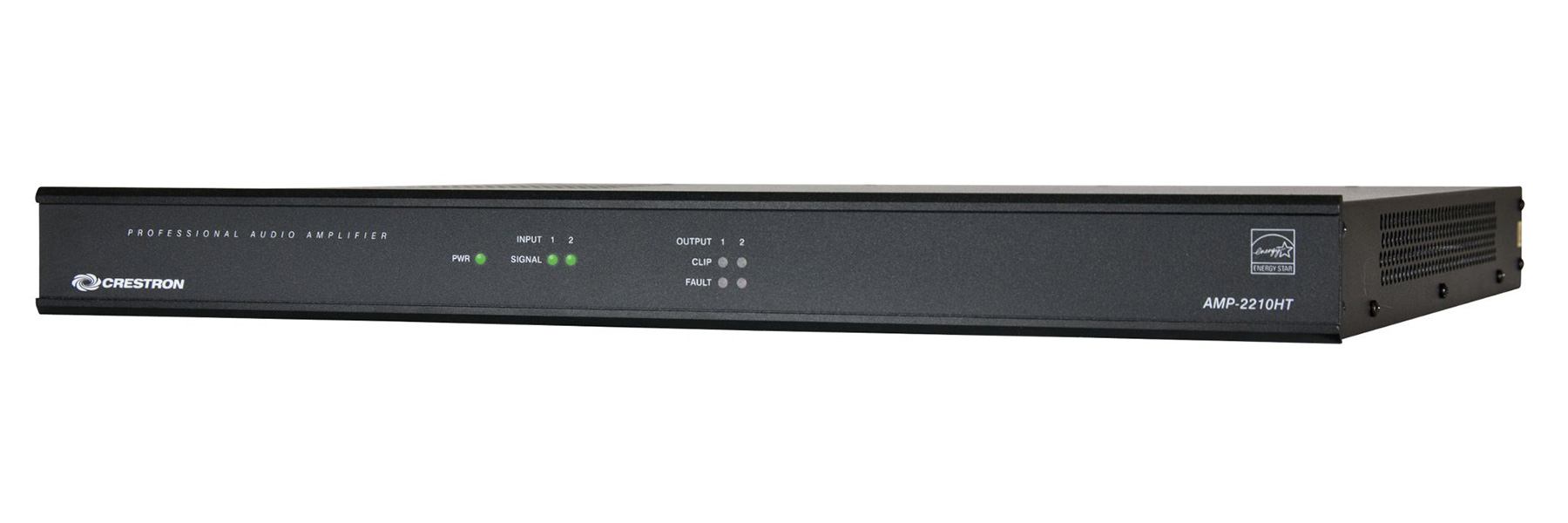

AMP-2210HT
Crestron® AMP-series Commercial Power Amplifiers provide a perfect combination of high output and efficiency for all types of professional audio applications. 100% Crestron engineered and built, these amplifiers are ENERGY STAR® qualified to enable organizations to fulfill their green initiatives without compromising on audio performance. Advanced design features include a high-efficiency amp topology with active power factor corrected power supply, delivering a generous amount of power in a space-saving 1U rack-mountable chassis.
The AMP-2210HT provides two independent channels of amplification with configurable outputs to suit a range of system designs. Each channel is configurable via a simple selector switch to handle either low-Z or 70V constant-voltage speaker systems. Each channel is rated for 210W @ 70V or 4Ω, or 120W @ 8Ω. Additionally, the two channels may be bridged together to deliver a robust 420W @ 8Ω to a single load.
AMP-2210HT Key Features
- Ultra-efficient space-saving design
- Low total cost of ownership
- High-output power, low noise, low distortion performance
- Each channel selectable for 4/8Ω or 70V operation
- Two channels each rated 210W@4Ω, 120W@8Ω, and 210W@70V[1]
- Bridgeable for 420W@8Ω
- Individual channel power control via jumper or remote contact
- Auto power-down after 30 minutes of no signal
- Instant auto power-on when an input signal is detected
- No inrush current during power-up
- Over current and DC offset protection per output
- Thermal protection on the power supply and each channel
- Front panel signal, clip, and fault indicators per channel
AMP-2210T
The AMP-2210T provides two independent channels of amplification with configurable outputs to suit a wide range of system designs. Each channel is configurable via a simple selector switch to handle either low-Z or constant-voltage speaker systems. Each channel is rated for 210W @ 4Ω, or 120W @ 8Ω, 70V, or 100V. Additionally, the two channels may be bridged together to deliver a robust 420W @ 8Ω to a single load. The 70/100V outputs are transformer isolated to handle long and complex wire runs.
AMP-2210T Key Features
- Bridgeable for 420W@8Ω
- Individual channel power control via jumper or remote contact
- Auto power-down after 30 minutes of no signal
- Instant auto power-on when an input signal is detected
- No inrush current during power-up
- Over current and DC offset protection per output
- Thermal protection on the power supply and each channel
- Front panel signal, clip, and fault indicators per channel
- Professional balanced inputs
- Detachable terminal block connectors
- Rear panel ±10dB input level controls
- Convection cooled – no noisy fans
- Single-space 1U rack mountable
- Under 15 inches deep
- Universal power supply with active power factor correction
AMP-3210S
The AMP-3210S provides three independent channels of amplification. Each channel is rated for 210W @ 4Ω or 120W @ 8Ω, and channels 1 and 2 may be bridged together to deliver a robust 420W @ 8Ω to a single load. Its ultra-efficient design allows the AMP-3210S to meet demanding ENERGY STAR qualification requirements, affording a cost-reducing solution for boardrooms, auditoriums, and other commercial systems. Auto power-down places the amplifier into a low-power standby state if no input signal is detected for 30 minutes.
The amplifier quickly powers back on the instant an input signal is detected. In addition, each amp channel can be independently enabled or disabled via jumpers or remote contacts, reducing power consumption by shutting down individual channels when they are not needed. Whether switched remotely or through an AC power controller, the AMP-3210S draws no added inrush current during power-up, reducing AC circuit requirements and potentially eliminating the need for extra power sequencing equipment.
The AMP-3210S includes professional balanced inputs with rear-panel ±10dB input level adjustments to assure compatibility with a wide range of audio sources. Remote power control is enabled for each channel using external contact closures, switches, or control system relays. All input, output, and remote control connections are facilitated via detachable screw-terminal connectors to simplify installation and servicing.
AMP-3210S Key Features
- Individual channel power control via jumper or remote contact
- Auto power-down after 30 minutes of no signal
- Instant auto power-on when an input signal is detected
- No inrush current during power-up
- Over current and DC offset protection per output
- Thermal protection on the power supply and each channel
- Front panel signal, clip, and fault indicators per channel
- Professional balanced inputs
- Detachable terminal block connectors
- Rear panel ±10dB input level controls
- Convection cooled – no noisy fans
- Single-space 1U rack mountable
- Lightweight and under 11 inches deep
- Universal power supply with active power factor correction
AMP-3210T
The AMP-3210T provides three independent channels of amplification with configurable outputs to suit a wide range of system designs. Each channel is configurable via a simple selector switch to handle either low-Z or constant-voltage speaker systems.
Its ultra-efficient design allows the AMP-3210T to meet demanding ENERGY STAR qualification requirements, affording a cost-reducing solution for everything from boardrooms and auditoriums to paging and background music systems. Auto power-down places the amplifier into a low-power standby state if no input signal is detected for 30 minutes. The amplifier quickly powers back on the instant an input signal is detected. In addition, each amp channel can be independently enabled or disabled via jumpers or remote contacts, reducing power consumption by shutting down individual channels when they are not needed. Whether switched remotely or through an AC power controller, the AMP-3210T draws no added inrush current during power-up, reducing AC circuit requirements and potentially eliminating the need for extra power sequencing equipment.
AMP-3210T Key Features
- Low total cost of ownership
- High-output power, low noise, low distortion performance
- Each channel selectable for 4/8Ω, 70V, or 100V operation
- Three channels each rated 210W@4Ω, 120W@8Ω, and 120W@70/100V
- Transformer isolated 70 and 100 Volt outputs
- Channels 1 and 2 bridgeable for 420W@8Ω
- Individual channel power control via jumper or remote contact
- Auto power-down after 30 minutes of no signal
- Instant auto power-on when an input signal is detected
- No inrush current during power-up
- Over current and DC offset protection per output
- Thermal protection on the power supply and each channel
AMP-X300
X-Series Amplifier
The AMP-X300 provides a professional amplifier solution for commercial applications that saves energy, space, and money. The modular design is easy to configure and ships with everything required to enable surface mounting, rack mounting, and ganging multiple units together.
The Crestron® AMP-X300 is a high performance, space saving, energy efficient, professional grade amplifier solution that’s totally configurable, yet simple to use. Whether you need a stereo amp that mounts on a wall or under a table, or a multichannel rack mount amp with multiple output types and power levels, the AMP-X300 is simple to specify and install in any configuration.
AMP-X300 Key Features
- 1 RU high design is surface or rack mountable
- Half-rack width form factor, gangable with other next generation half-rack width form factor products
- Captive speaker connectors for secure and robust connectivity
- Balanced and unbalanced inputs
- Standby feature instantly turns on amplifier when input sensing circuitry detects an audio signal
- Always On feature allows constant on connection with very low power consumption
- Front panel power/standby, fault, and signal/clip indicators
- Internal universal 100-240V power supply
